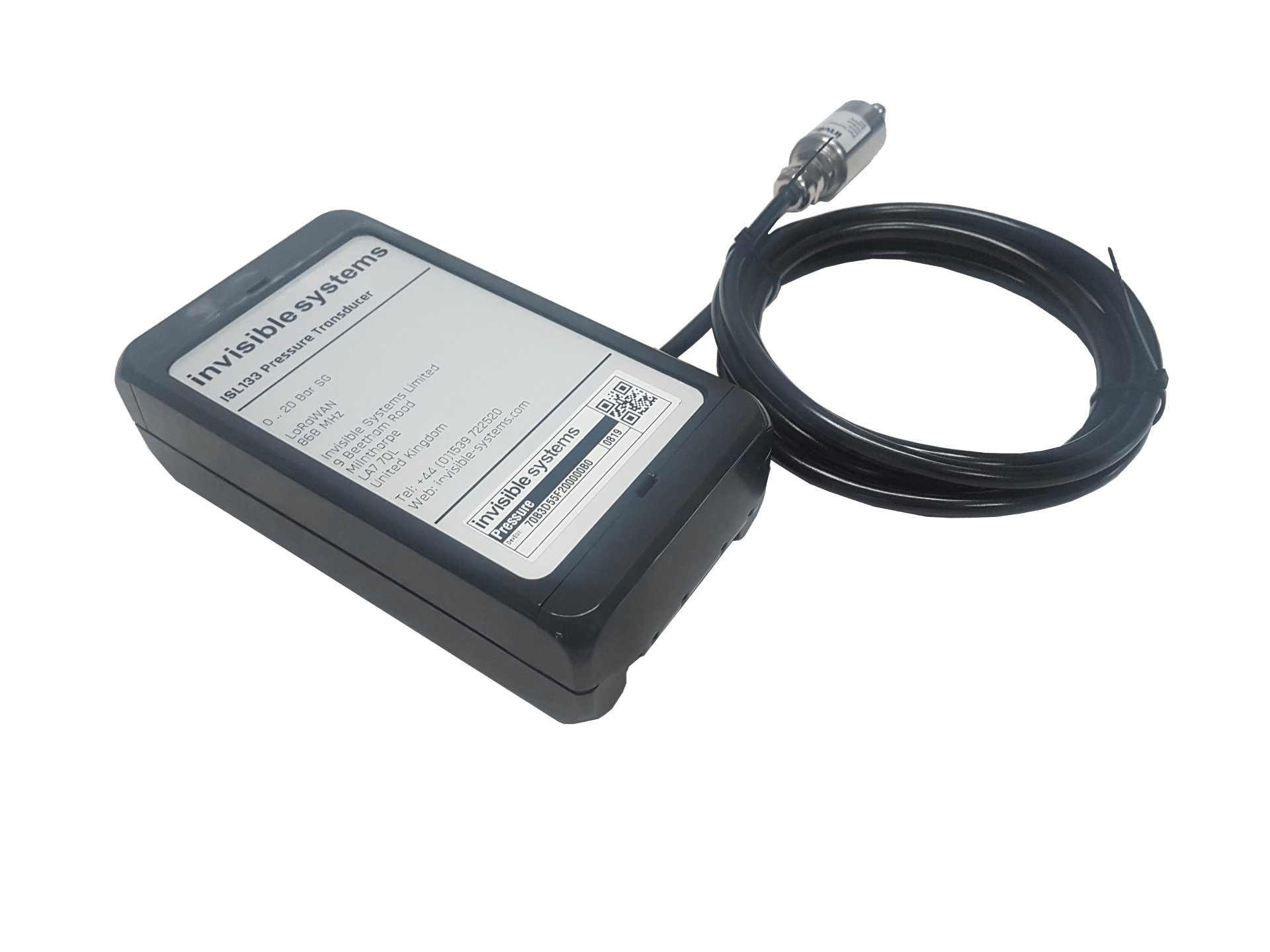

PRESSURE LOGGER (125L)



Designed to read from any standard ratiometric output (mV/V) pressure transducer. Pressures can be read at configurable intervals, from minutes to hours. The ISL125L is battery powered, wireless and simple to install at any location.

  • Works with any standard ratiometric output (mV/V) pressure transducer

  • Battery powered

  • Built in antenna

  • Pressure Edge Intelligence (thresholds – warning, alarm)

  • Available as a ‘data as a service’ offering

  • Configurable measure and transmit interval

  • Configurable transmit interval for each mode (standard, warning and alarm)
pressure-transducer

KEY FEATURES



battery (1)

LONG BATTERY LIFE

Our sensors have been designed to have a battery life of up to 10 years, so you don't have to worry about changing them frequently.

bell (1)

PROACTIVE ALARM SYSTEM

Pro-active alerts ensure that your team can prevent any critical level breaches.

two-settings-cogwheels (3)

SIMPLE SET-UP

Our sensors are easy to set up and do not require integration with your existing IT infrastructure.

website (1)

PERSONALISED DASHBOARDS

Our online monitoring software, Realtime Online is set-up to meet the specific needs of your organisation.

checked

PROVEN PARTNER

At Invisible Systems, we've worked in IoT for over 17 years. Our solutions have a proven track record in supporting businesses.

notes

LOWER COSTS

Choosing wireless sensors and a cloud platform enables you to reduce your installation and maintenance costs.

ADDITIONAL INFORMATION

CONFIGURABLE THRESHOLDS

Configurable high/low thresholds allow different transmit intervals when thresholds are crossed providing advanced edge intelligence to the network, and enable alarms to be generated by Realtime-Online™.


REAL-TIME MONITORING

Data from every sensor in your network is reported back through Invisible Systems Big Data architecture either to our Monitoring and Analytics platform Realtime-Online™, or to a partner cloud platform via our API, ensuring that your data is visible, actionable and valuable to your organisation.


NB-IOT

NB-IoT is a standards-based narrowband Low Power Wide Area (LPWA) technology developed to enable a wide range of new IoT devices and services. NB-IoT devices connect directly to the cellular mobile network via a low-cost SIM card. NB-IoT significantly improves the power consumption of user devices, system capacity and spectrum efficiency.

TECHNICAL DATA

COMMS

Band: 1, 3, 5, 8, 20, 28

Expected range (line of sight): Up to 10km

Power: 23dBm ± 2dB

APPROVALS

CE, other regions available on request

ENVIRONMENTAL



Dimensions (mm): 151X80X60

Enclosure colour: Grey

Enclosure plastic type: Polycarbonate

Operating Temp Range: -20°C to +60°C

Operating Humidity Range: 30% RH to 90% RH

Battery: 1 x C-cell (8500 mAh)

Batteries type: Lithium Thionyl Chloride (Non rechargeable)

Expected battery life, 15 min Tx interval: Up to 3 years

Expected battery life, 6 hour Tx interval: Up to 10 years

Operating lifetime: Up to 10 years

Power type: Battery 3.6VDC

GENERAL

Measurement interval range: 10 secs - 60 mins

Tx interval range (multiple of measure intervals): 1 min - 6 hours

STATUS INPUTS



Digital status inputs: 2

Cable: 1m 4-core PVC (optional)

ANALOGUE INPUTS



1 x Pressure input from external sensor
mV/V sensors
Range depends on sensor
Download Datasheet
