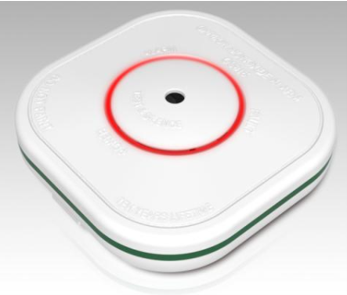

CARBON MONOXIDE ALARM (ISL EM1040)
The ISL EM1040 Carbon Monoxide Alarm is designed to detect carbon monoxide gas from any source of combustion.
The device uses an electrochemical sensor.
It will operate on a LoRaWAN net-work, but for safety reasons, damage to the LoRaWAN module will not affect the main function of the alarm, only affect the related module functions.
-
For indoor use
- Electrochemical sensor
- Sensitivity setting conforms to EN 50291-1:2010+A1:2012 standard:
- 30ppm without alarm before 120 minutes
- 50ppm between 60 to 90 minutes
- 100ppm between 10 to 40 minutes
- 300ppm less than 3 minutes
- Alarm sound of ≥ 85 dB at 100cm @3.2±0.5kHz pulsing alarm
- Red alarm LED indicator
- Yellow fault LED
- Green power LED flashes every 30 seconds
- Test/silence button
- Low standby current, long battery life
KEY FEATURES
.png?width=60&height=60&name=battery%20(1).png "battery (1)")
LONG BATTERY LIFE
Our sensors have been designed to have a battery life of up to 10 years, so you don't have to worry about changing them frequently.
.png?width=60&height=60&name=bell%20(1).png "bell (1)")
PROACTIVE ALARM SYSTEM
Pro-active alerts ensure that your team can prevent any critical level breaches.
PROVEN PARTNER
Invisible Systems are trusted by clients in both the public and private sectors. You can rely on us to deliver an outstanding level of service.
.png?width=60&height=60&name=website%20(1).png "website (1)")
PERSONALISED DASHBOARDS
Our online monitoring software, Realtime Online is set-up to meet the specific needs of your organisation.
.png?width=60&height=60&name=two-settings-cogwheels%20(3).png "two-settings-cogwheels (3)")
SIMPLE SET-UP
Our sensors are easy to set up and do not require integration with your existing IT infrastructure.
LOWER COSTS
Choosing wireless sensors and a cloud platform enables you to reduce your installation and maintenance costs.
ADDITIONAL INFORMATION
CONFIGURABLE THRESHOLDS
Configurable high/low thresholds allow different transmit intervals when thresholds are crossed providing advanced edge intelligence to the network, and enable alarms to be generated by Realtime-Online™.REAL-TIME MONITORING
LORAWAN
The ISL EM1040 is a LoRaWAN certified device and Invisible Systems are members of the LoRa alliance. It offers both ABP and OTAA activation options and is designed to work with all LoRaWAN gateways and network servers.
TECHNICAL DATA
COMMS |
Frequency: EU868 Activation: OTAA |
ENVIRONMENTAL |
Dimensions: 95x95x34mm Operating temperature range: -10°C to +45°C Operating relative humidity range: 30 to 95%RH, non-condensing Storage conditions: -20 to +50°C, 10 to 95%RH, non-condensing Sensor type: Electrochemical Sensitivity: 30ppm without alarm before 120 minutes, 50ppm between 60 to 90 minutes, 100ppm between 10 to 40 minutes, 300ppm less than 3 minutes Alarm volume: ≥85dB@100cm @3.2±0.5kHz pulsing alarm CO alarm silence: Approx. 5 minutes Batteries: 3VDC (2 x alkaline AA cells) Standby current: ≤50μA Alarm current: ≤20mA Product life: 10 years after initial power up LEDs: Green - power | Yellow - fault | Red - alarm Test/silence button: Yes |
